1.Original non-electrolytic power supply technology, which can't be changed color when processing TITANIUM alloy and reduces the redissoloving layer and prolongs the life of the die.
2.Best Surface Finish <Ra 0.6um
3.Max cutting speed: 300mm2/min
4.Advanced pulse supply realizes low wear rate：processing100000mm2/ wire wears 0.005mm
5.Professional high quality industrial computer and international brand device ensure stable and reliable performance
6.X/Y axes equip with Mitsubishi AC servo Motor and driver make processing stable and get high precision for multi cutting.
7.High precision ball screw and linear guideway realize pitch compensation function and greatly improve positioning accuracy and mechanical following
8.High strength and stability resin sand castings, bed with sufficient rigidity and strength

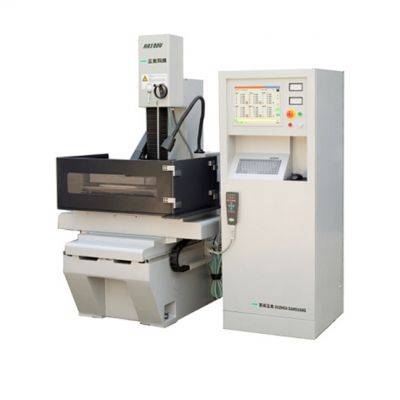

HA320U SPECIFICATIONS
| Model: | HA320U |
| Worktable dimension | 800×540mm |
| Worktable stroke(X,Y） | 320×250mm |
| Max.workpiece weight | 350kg |
| Max.workpiece height | 300mm |
| Max. Cutting Angle | 12°/50mm |
| Max cutting speed | 300mm2/min |
| Max. Cutting Currrent | 12A |
| Best Surface Finish | Ra≤0.6?m |
| Wire diameter | 0.13～0.25mm |
| Machine Dimmension(L*W) : | 2530mm×1600mm |
| Machine weight | 2000Kg |
